Using Hall Effect Sensors to Measure Voltage
Optimized Hall Effect voltage sensors are used to measure small currents resulting from the voltage applied to a circuit with a large resistor.
In practical applications, the resistor is typically divided in two, with the Hall Effect voltage sensor placed in the middle to enhance common mode rejection. The closed-loop Hall Effect provides a cost-effective and versatile solution for voltage measurement.
LADAR offers a wide range of industry-standard Hall voltage sensors for isolated voltage measurement. The wide range of products measures a wide range of voltages and uses a variety of technologies including Hall Effect.
- HALL VOLTAGE SENSORS -
Hall Voltage Sensor:
How is it different from the Hall Current Sensor?
In fact, there is no difference between current sensors and voltage sensors. Both are considered current sensors. The difference lies in construction and the number of turns of the primary coil.
In current sensors, the primary coil has only one turn, while the primary coil of voltage sensors has a large number of turns (on average 1000 turns). In addition, instead of measuring wide currents, voltage sensors can be used to measure very low currents in the range of 0.01 mA.
-
HNV-050AV
The HNV_050AV series is our most popular voltage sensor for traction and industrial applications.
- Compact design
- A unique design to cover all measurement ranges
- Voltage measurement range: 100~2500 V
- DC, AC, and pulse voltage measurement
- With an electrical isolation function
- Power supply: ±15V±5%
- Operating temperature range: -40°C to +85°C
LADAR | FIND YOUR NEED
-
HNV025T
HNV025T series is our most popular product in the field of control feedback systems, variable speed drive systems, and power supply applications.
Features:
- High electrical insulation- High overload capacity
- Power supply: ±15V±5%

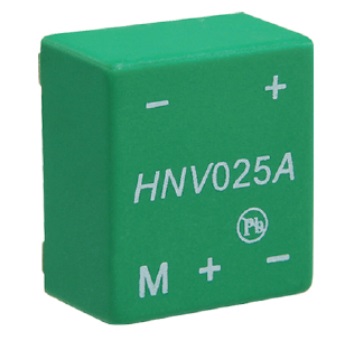

-Operating temperature range: -40°C to +85°CHNV025A
HNV025A series is our most popular product in the field of control feedback systems, variable speed drive systems, and power supply applications.
Features:
- High electrical insulation- High overload capacity
- Power supply: ±15V±5%
-Operating temperature range: -40°C to +85°C
LADAR | PRODUCT SELECTION GUIDE
LADAR offers a wide range of products for electrical measurements across various applications. The LADAR product catalog features thousands of components that enhance the safety and reliability of customer systems. This includes current sensors, voltage sensors, speed sensors, position sensors, etc.
You can use the Product List to filter components based on technical data such as electrical measurement type (current, energy, power supply, voltage), sensor nominal value, power supply voltage, installation type, and accuracy. If you already have a specific LADAR product series in mind, you can directly click on the product model to view its relevant parameters.
We hope you can select products based on technical specifications and find valuable solutions.
FEATURED LADAR VOLTAGE SENSORS FAMILIES
Want to know more about our sensing offer?
Didn't find the product you need?
LADAR can provide you with customized services!
If you want to know more about the technologies used in our Hall Effect transducer ranges, feel free to visit our APPLICATION area.
To find the right sensor for your application, you can use the LADAR sensor selector tool.
Please feel free to contact us and we will guide you to find the right product.
